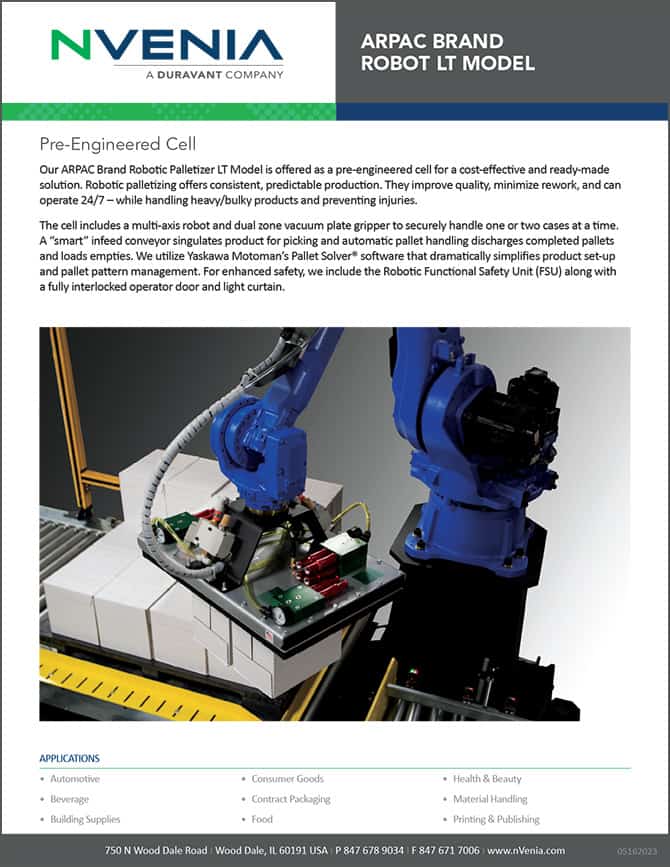

Arpac Brand LT Robotic Palletizer Model
Our Arpac Brand Robotic Palletizer LT Model is offered as a pre-engineered cell for a cost-effective and ready-made solution. Robotic palletizing offers consistent, predictable production. They improve quality, minimize rework, and can operate 24/7 – while handling heavy/bulky products and preventing injuries.

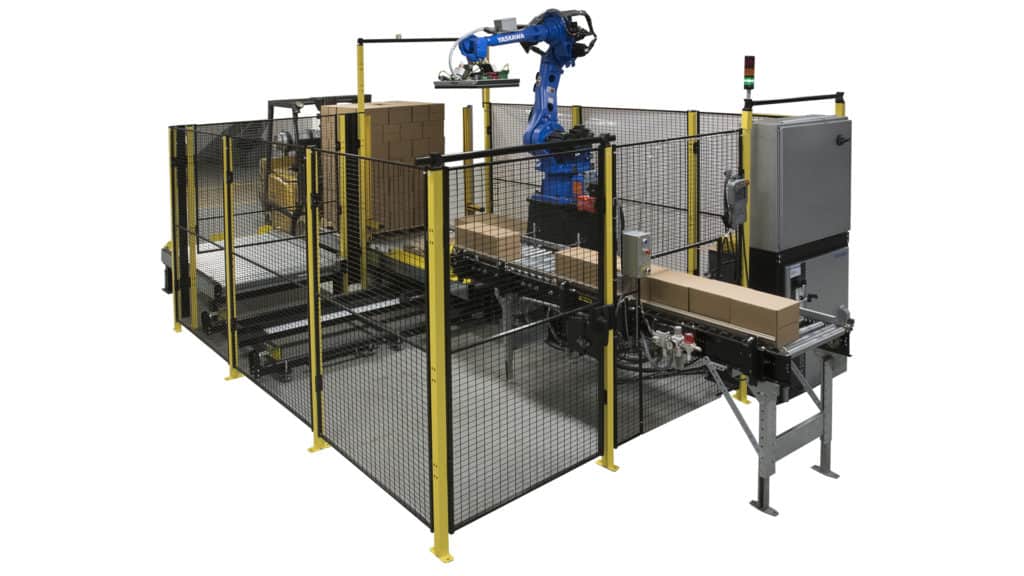

The cell includes a multi-axis robot and dual zone vacuum plate gripper to securely handle one or two cases at a time. A “smart” infeed conveyor singulates product for picking and automatic pallet handling discharges completed pallets and loads empties. We utilize Yaskawa Motoman’s Pallet Solver® software that dramatically simplifies product set-up and pallet pattern management. For enhanced safety, we include the Robotic Functional Safety Unit (FSU) along with a fully interlocked operator door and light curtain.
- Robot: Motoman MPL80II 80Kg, 5 axis robot, with Riser
- 10′ smart inffed couting conveyor, accumulation roller with stop and acceleration
- Finished pallet offload conveyor
- Allen-Bradley power, control, and safety components throughout
- Allen-Bradley CompactLogix PLC
- Allen-Bradley PanelView Plus 7″ operator interface
- Pallets: 40” x 48” CHEP or GMA (or equivalent)
- Tooling: Vacuum plate, 23.6” x 15.7”, venturi driven
- Two-zone operation, two product detectors
- Robot Functional Safety Unit (FSU)
- NEMA 12 electrical cabinet
- 79” (2 meter) safety fence
- Interlocked access door
- Light curtain for pallet discharge
- Slip/ layer sheet dispenser
- Automatic pallet dispenser
- Offline stretch wrapper
- Pallet Solver configuration software
- 1 or 2 up configuration
15 cases per minute (nominal)
Minimum Product Dimensions
4″ W x 9″ L x 4″ H (3 roller minimum required on length, 3″ centers)
Maximum Product Dimensions
16″ W x 32″ L x 12″ H
Maximum Product Weight
Single Pick: 60 lbs.
Double Pick: 30 lbs.
Maximum Product Height
80″ (including pallet)
