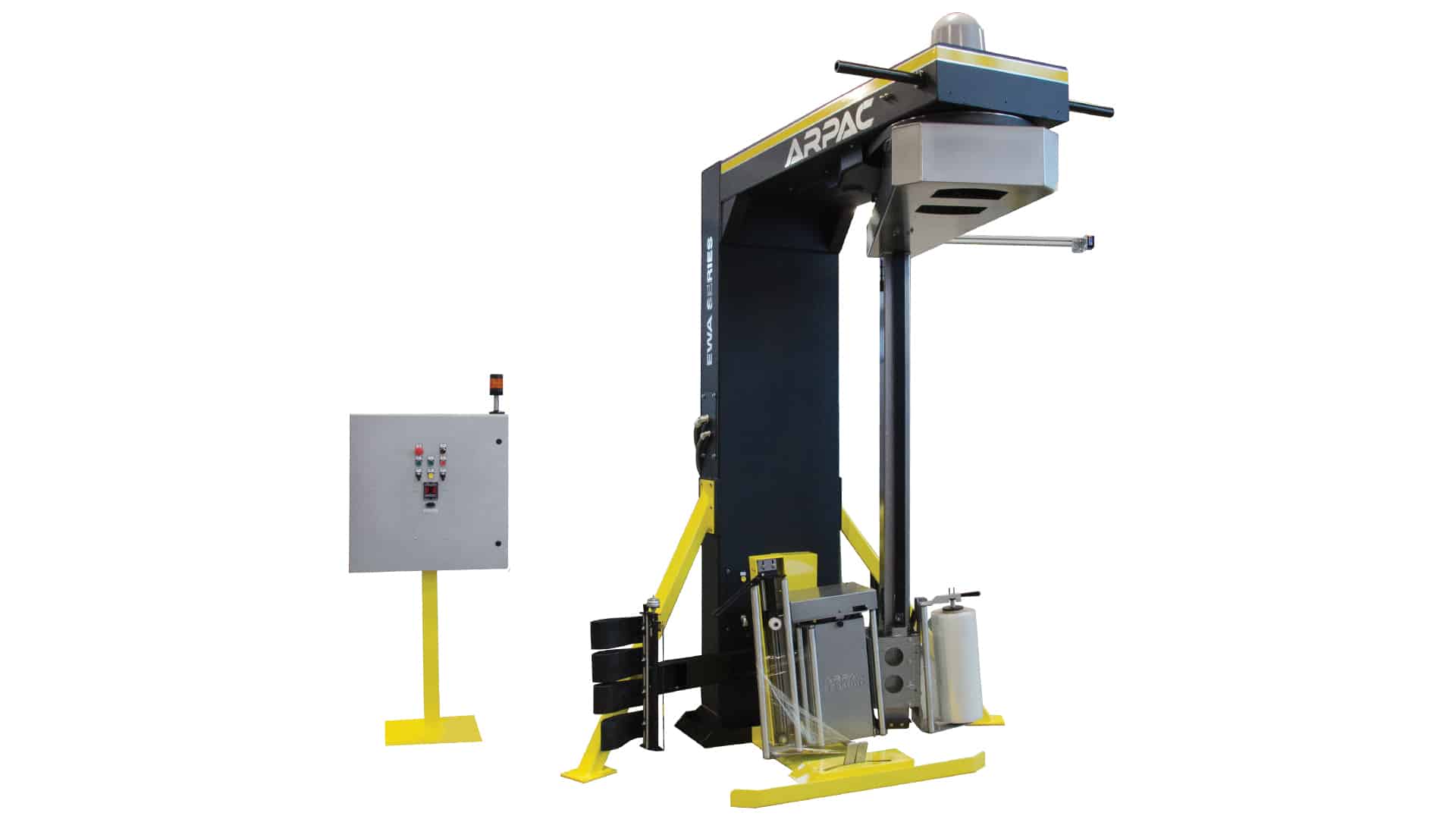

Arpac Brand EWA Model


Our Arpac Brand EWA Model is a Rotary Tower style stretch wrapper with automatic functions for attaching, cutting, and securing, the film to the load. Like all of our stretch wrappers, the EWA is constructed of heavy-duty, welded steel structures designed for long life and machine stability. Complete with easy to use Allen-Bradley controls, the EWA is an ideal solution for many applications.

A key benefit of this  design is that no air is required, which makes this ideal for cold storage areas where air lines would freeze. It also offers a range of options for a variety of applications and load types, including cold and freezer packages, auto-roping, and tower and arm extensions for larger load types.

Are you interested in this product?
We are here to help.

Contact Us

Featured Video

Features

  • Heavy-duty, welded steel construction (no plastic panels) designed for long life
  • Magnetic proximity switches in place of mechanical limit switches
  • Long-range photo eye for automatic load height sensing
  • Positive home position alignment
  • Adjustable top and bottom illuminated LED wrap counter
  • Allen-Bradley® power, control, and safety components
  • Allen-Bradley® MicroLogix™ PLC
  • User-friendly push-button operator control panel
  • Built-in self-diagnostics
  • EZ-Load® film pre-stretch dispenser for 20″ film rolls
  • Dual anti-static film rollers with manufacturer’s lifetime warranty
  • Electric clamp, cut and wipe-down system
  • Top film overwrap control feature (TOC)
  • Electronic film tension adjustment control on control panel
  • Belt lift for quiet operation
  • Dual V-belt drive rotating arm
  • Dancer bar variable corner compensation
  • Cycle pause feature and wrap arm control
  • Manual jog control for rotating arm
  • Flashing safety beacon
  • Heavy-duty slewing bearing and NEMA 3 commutator
  • NEMA 12 electrical cabinet
  • UL/CSA approved components

Standard Specs

Speed

Up to 15 RPM rotating table can deliver 25–55 loads per hour
Variable carriage speed up to 21 FPM

Electrical Power Requirements

120VAC, 1 Ph, 60Hz, 15 A (no options)

Recommend dedicated 25 A circuit

Compressed Air Requirements

None

Max Load Width and Length

53” W x 53″ L Standard, up to 60″ W x 60″ L Optional

Load Height Range

24″ H min, 80″ H Standard, up to 110″ H Optional

Film Roll Diameter

20″ Standard, up to 30″ Optional

Other Film Specifications

Film pre-stretch capability from 150% to 300% stretch factor (200% standard)

Machine Length x Width x Height

84″  x 91″ (wrapper only) x 123″ (standard tower)

Accessories

OPTIONS

  • Tower and arm extensions for wrapping loads up to load size: 60″ L × 60″ W × 110″
  • 30″ film delivery system
  • Automatic roping device
  • Extended umbilical cord options
  • Cycle counter
  • Adjustable roping guide
  • Automatic electrical roping
  • Bottom rollover Bar
  • Remote start
  • Pedestal mounted control cabinet
  • Cold and freezer packages available
  • Other NEMA rated control enclosures available
