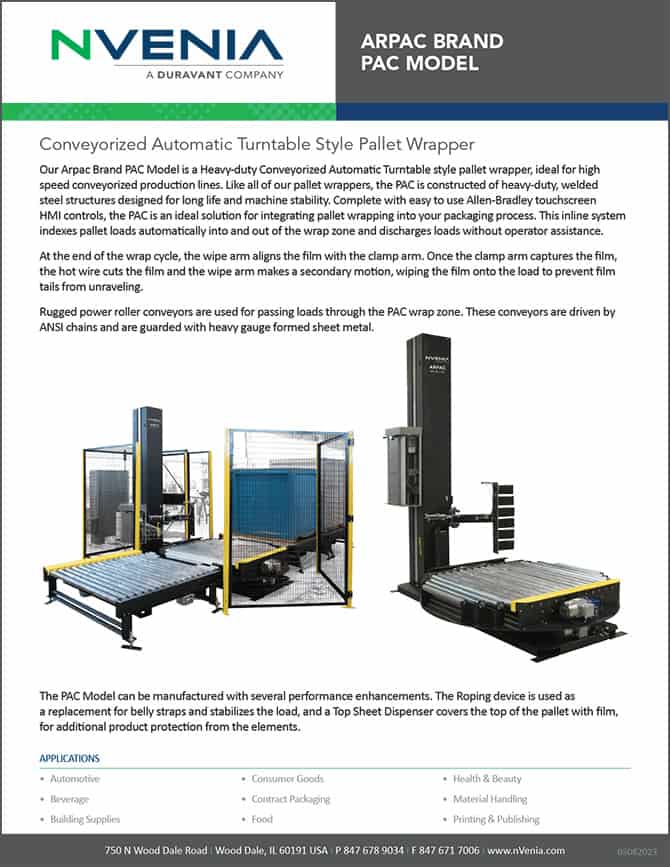

Arpac Brand PAC Model

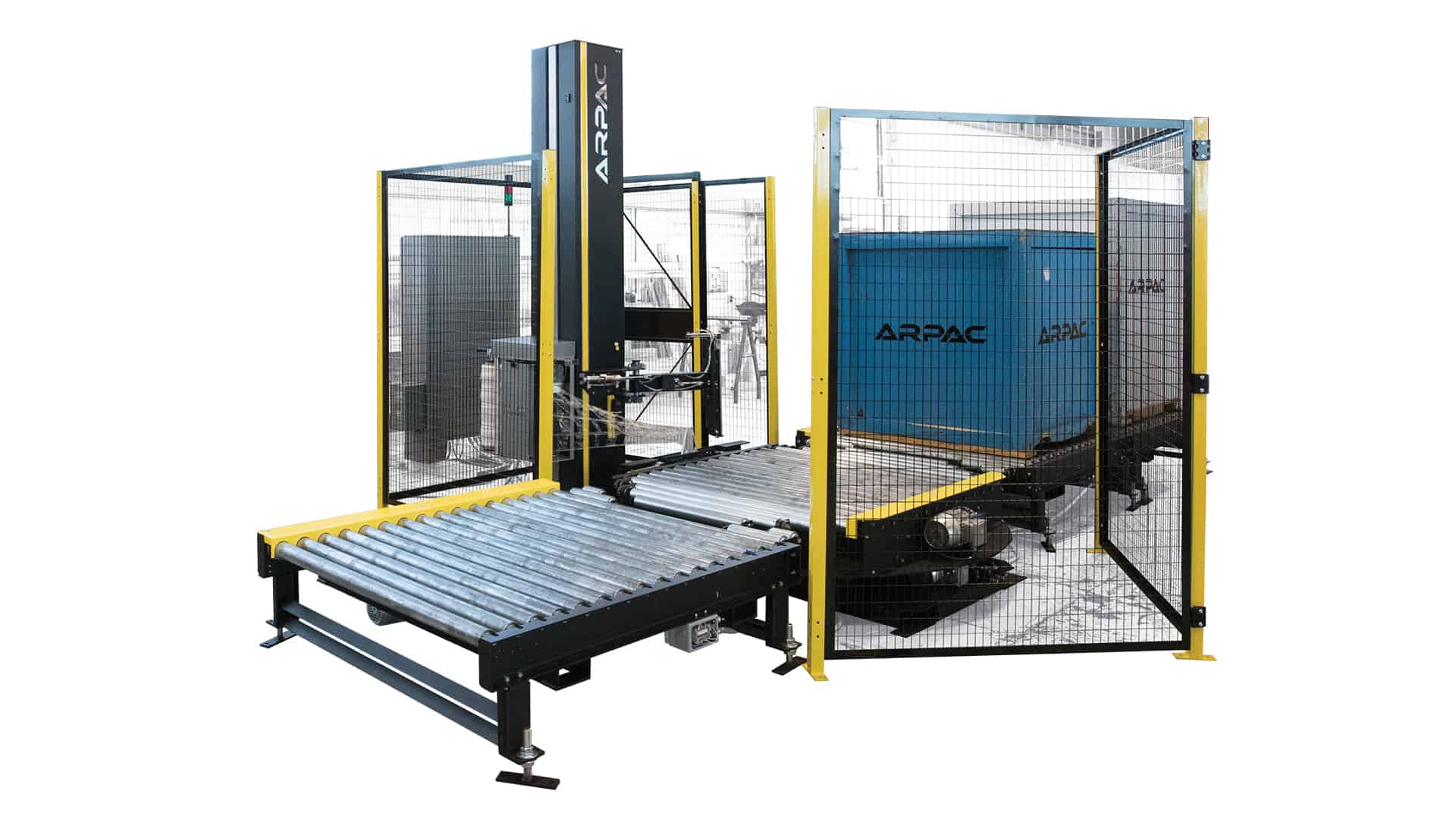

Our Arpac Brand PAC Model is a Heavy-duty Conveyorized Automatic Turntable style stretch wrapper, ideal for high speed conveyorized production lines. Like all of our stretch wrappers, the PAC is constructed of heavy-duty, welded steel structures designed for long life and machine stability. Complete with easy to use Allen-Bradley touchscreen HMI controls, the PAC is an ideal solution for integrating stretch wrapping into your packaging process. This inline system indexes pallet loads automatically into and out of the wrap zone and discharges loads without operator assistance.

At the end of the wrap cycle, the wipe arm aligns the film with the clamp arm. Once the clamp arm captures the film, the hot wire cuts the film and the wipe arm makes a secondary motion, wiping the film onto the load to prevent film tails from unraveling.

Rugged power roller conveyors are used for passing loads through the PAC wrap zone. These conveyors are driven by ANSI chains and are guarded with heavy gauge formed sheet metal.

The PAC Model can be manufactured with several performance enhancements. The Roping device is used as a replacement for belly straps and stabilizes the load, and a Top Sheet Dispenser covers the top of the pallet with film, for additional product protection from the elements.

Are you interested in this product?
We are here to help.

Contact Us

Featured Video

Features

  • Heavy-duty reinforced structural steel construction
  • Heavy-duty conveyors with 2.5″ rollers, 11 gauge wall spaced at 3.75″ pitch driven by “loop to loop” ANSI chain
  • Unique 36″ diameter precision steel ring turntable support for stable load entry and exit
  • Driven turntable transition rollers for more positive pallet handling
  • Turntable drive: 3/4 HP VAC motor with ANSI 60 chain
  • Mechanical lock holds turntable in position during product transfer
  • Manual conveyor controls
  • Dual chain carriage lift system
  • 4,000 lb. load capacity
  • Photo electric load height sensor that detects most dark colored loads
  • Photo electric sensors control indexing, position and exiting of wrapped load
  • Touch screen Allen-Bradley® HMI for machine parameter settings, manual operations and fault diagnostics messages
  • Standard 6′ high safety fencing and access door with interlock switch for safe entry into wrapping area
  • EZ-LOAD FILM-SAVR® Powered Pre-Stretch: up to 300% with minimum neck down
  • Film delivery system: 1/2 HP, 90 VAC motor
  • Anti-static film rollers, lifetime guarantee
  • Automatic film clamp and cut device
  • Top film overwrap control feature (TOC)
  • Electronically controlled film tension adjustment
  • Proximity switch dancer bar control for more reliable film feed speed control and corner compensation
  • Adjustable top and bottom wrap counters (0-7)
  • Variable carriage speed (0-21FPM)
  • Remote NEMA 12 electrical enclosure
  • UL approved components

Standard Specs

Speed

Variable carriage speed (0-21FPM)

Conveyor speed: 30 FPM

Turntable speed: 15 RPM

Electrical Power Requirements

220V, 3Ph, 60Hz, 20A Standard, 480VAC Optional

Compressed Air Requirements

80 psi, 3 SCFM

Min Load Dimensions

30″ W x 30″ L x 24″ H

Max Load Size

48″ W x 48″ L x 65″ H

Film Roll Diameter

20″ Standard, up to 30″ Optional

Other Film Specifications

Film pre-stretch capability from 150% to 300% stretch factor (200% standard)

Accessories

OPTIONS

  • Wrap-N-Weigh feature can be integrated into conveyor
  • Roping option with special roping sequences
  • Top platen feature for supporting unstable loads during the wrapping cycle
  • Top sheet dispenser for extra load protection from the elements
  • Variable speed conveyors
  • Various turntable heights, tower extensions and conveyor lengths to suit your application
  • 30″ film delivery system
  • Extended wrap height
  • Film fault alarm that signals empty film roll, film breaks
  • Fork truck safety eye prevents conveyor section from running while loading and unloading
  • 480VAC
