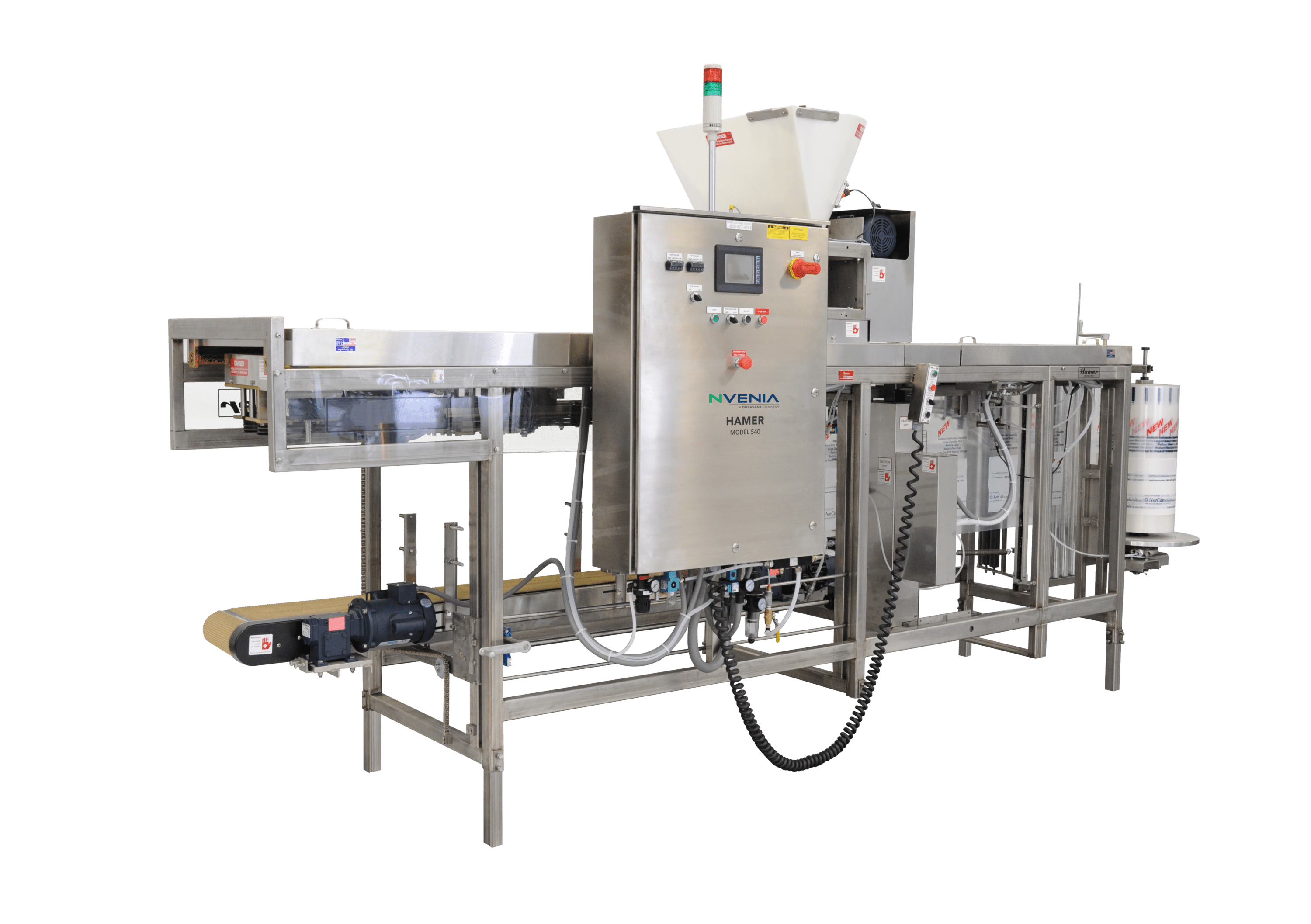

Hamer Brand Model 540 Form Fill and Seal (FFS) Packaged Ice Machine


Our Hamer Brand Model 540 packaged ice bagging machine provides versatility and high speed automation for packaged ice production. The machine enables forming, filling and sealing of all popular bag sizes with the flexibility to add features such as gussets and in-bag handles. The machine comes complete with a 304 stainless steel volumetric filler with a food grade UHMW lining and variable speed controls for high speed ice dosing. The hot air top seal consumes 10% less energy than similar wire tie machines at speeds up to 40 bags per minute. The touch screen HMI simplifies operator training and machine operation.

Are you interested in this product?
We are here to help.

Contact Us

Features

  • 304 stainless steel frame and product contact surfaces
  • Easy Run™ hot air seal bag top closing reduces film use
  • Touchscreen HMI
  • 15″ vertical roll holder
  • AC variable speed heat sealer and volumetric feeder
  • Automatic bag venting
  • Easy view low product level light
  • Handheld remote control

Standard Specs

Bag Sizes

Width: 11″ to 18″

Length: 14″ to 35″

Weight: 5 lb/2 kg to 40 lb/20 kg

Thickness: 1.75 mil to 4 mil

Speed

Up to 40 BPM

Power Requirements

220 VAC, Single Phase, 60 Hz

Air Requirements

32 CFM @ 80 PSI clean/dry air

Note: air consumption increases with some applications

Accessories

OPTIONS:

  • Date coders
  • Inkjet printer
  • Bag bottom gusset former
  • Bag top trimmer
  • Handle former
  • Speed up kit
  • 35″ roll holder
  • Core lift chuck for 35″ rolls
  • 35″ portable roll stand
  • Allen-Bradley MicroLogix color touchscreen PLC
  • Caster kit
  • 50 Hz electrical
