Fischbein Brand TRS-100 Trim Removal System

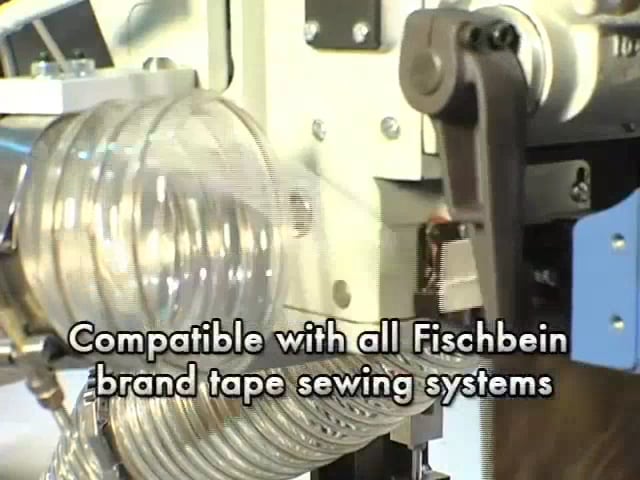

The Fischbein Brand TRS 100 is a cost effective, self contained trim removal system that removes and recovers bag top trimmings and tape clippings from Fischbein Brand sew systems. The TRS-100 has two collection points, which capture and transport crepe paper clippings and trimmed bag tops to a container.

Are you interested in this product?
We are here to help.

Contact Us

Featured Video

Features

  • Capacity 6,000 to 8,000 bag tops depending on size and thickness
  • Powder coat finish
  • Operator “On/Off” safety switch
  • Heavy-duty 2 HP motor
  • NEMA 12 dust-tight electrics
  • Handles trim pieces up to 2.5 inches wide
  • Container and vacuum can be position up to a maximum of 50’ away from the sewing system
  • Mobile container with manual tilt for emptying – 14 gauge steel

Options

  • Additional 6-inch diameter flexible tubing – per foot
  • Collection Bin Separator (bag tops from clippings)

Standard Specs

  • Scrap container measures 57 x 48 x 53 inches (color blue)
  • Vacuum system 22 x 33 x 78 inches
  • Volume is 2 cubic yards
  • Static pressure – 103 inches of water
  • Volume flow 1300 CFM
