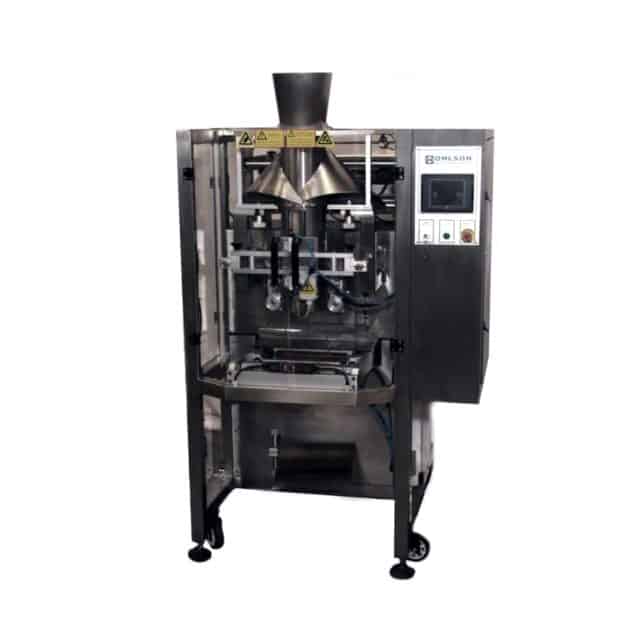

Ohlson Brand Vertical Form Fill Seal Bagging Machines


Vertical bagging systems essentially refer to a specific kind of vertical packaging machine also known as a vertical form fill seal machine. This particular piece of bagging machinery and equipment is a type of automatic packaging unit that is commonly used in the food packaging industry.

nVenia manufactures a variety of vertical form fill seal machines for various applications under its OHLSON Brand.

Sample specifications for six individual VFFX models are detailed below. Additional models (or variations of the models below) not listed may also be available, so please contact us so we can identify the best packaging system for your needs.

Are you interested in this product?
We are here to help.

Contact Us

Featured Video

Features

  • Dual Servo Control
  • Stainless Steel Construction
  • Auto Positioning Belts
  • Auto Film Detection
  • Auto Centering Film Spindle
  • PLC Controls
  • Color Touch Screen Display
  • Easy to operate and clean

Standard Specs

VFFX-427

  • Bag Width: 2” – 7”
  • Bag Length (Can be doubled with second stroke of vertical sealing bar): 2” – 9”
  • Max Film Width: 15.5”
  • Power: 10A, 220 VAC Single Phase
  • Air: 7 CFM @ 90 PSI
  • Dimensions W x L x H: 37.5 x 50.75 x 45.5
  • Speed: 100 BPM

VFFX-539

  • Bag Width: 3” – 9”
  • Bag Length (Can be doubled with second stroke of vertical sealing bar): 2” – 11″
  • Max Film Width: 19.5”
  • Power: 15A, 220 VAC Single Phase
  • Air: 7 CFM @ 90 PSI
  • Dimensions W x L x H: 45.75 x 59.25 x 58
  • Speed: 100 BPM

VFFX-2639

  • Bag Width: 3” – 9”
  • Bag Length (Can be doubled with second stroke of vertical sealing bar): 2” – 11″
  • Max Film Width: 19.5”
  • Power: 30A, 220 VAC Single Phase
  • Air: 12 CFM @ 90 PSI
  • Dimensions W x L x H: 65.25 x 59.25 x 58
  • Speed: 180 BPM

VFFX-6312

  • Bag Width: 3.5” – 12”
  • Bag Length (Can be doubled with second stroke of vertical sealing bar): 2” – 16″
  • Max Film Width: 25.5”
  • Power: 15A, 220 VAC Single Phase
  • Air: 7 CFM @ 90 PSI
  • Dimensions W x L x H: 48.75 x 61.75 x 73.5
  • Speed: 100 BPM

VFFX-10-6-15

  • Bag Width: 6.3”– 15.35”
  • Bag Length (Can be doubled with second stroke of vertical sealing bar): 2” – 18.9″
  • Max Film Width: 32”
  • Power: 15A, 220 VAC Single Phase
  • Air: 7 CFM @ 90 PSI
  • Dimensions W x L x H: 58.25 x 62 x 90.5
  • Speed: 30 BPM

VFFX-12-9-19

  • Bag Width: 9.5”– 19.75”
  • Bag Length (Can be doubled with second stroke of vertical sealing bar): 2” – 25″
  • Max Film Width: 40”
  • Power: 15A, 220 VAC Single Phase
  • Air: 7 CFM @ 90 PSI
  • Dimensions W x L x H: 70 x 85.5 x 115.75
  • Speed: 25 BPM

Accessories

*Note – All accessories may not be available for all models

  • Printer
  • Air Flushing
  • Gas Flushing
  • Air Expeller
  • Hole Punch
  • Gussett
  • Flat Bottom
  • Product Settler
  • Label applicator
