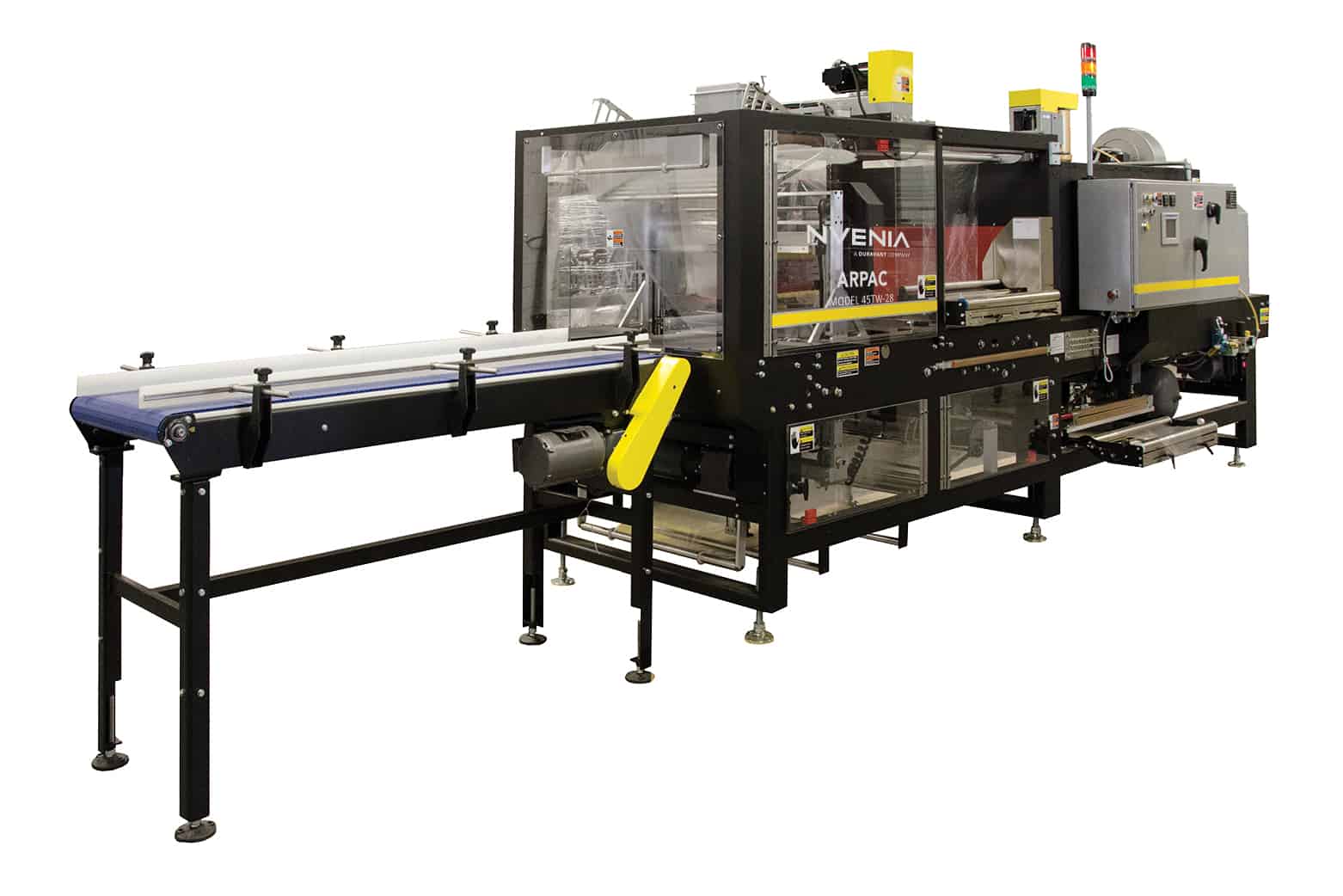

Arpac Brand 45TW Model Tray Wrapper


Our Arpac Brand 45TW Model is a continuous motion tray wrapper capable of wrapping up to 45 products per minute, depending on product size. It’s rugged design ensures years of reliable service.

This system will wrap any unitized or tray-packed product, including random pack sizes. It is ideal for wrapping a wide range of products in either a single tier or stacked arrangement, such as:

  • Cans
  • Plastic bottles
  • Jars
  • Glass bottles
  • Floor tiles
  • Plates
  • Cartons

Are you interested in this product?
We are here to help.

Contact Us

Featured Video

Features

Standard

  • Heavy-duty rugged construction designed for high durability and around-the-clock operation
  • Laser cut and CNC machined components for maximum precision
  • Powder coat finish that provides a durable scratch resistant surface and prevents corrosion
  • Allen-Bradley® PanelView 600Plus operator interface with color touchscreen, message display and self-diagnostics
  • Digital controls for fast and accurate setup when changing product size and film
  • Bypass mode allows product to pass through the machine with out being wrapped and without heating the tunnel
  • 6′ infeed belt conveyor for product pacing
  • Durable Intralox conveyor belts eliminate tracking problems
  • Continuous motion telescoping infeed, seal conveyor and carriage for optimum speed and performance
  • Manual film splicing bar for quick and easy film changeovers
  • 14″ diameter side mounted film cradles for easy film loading
  • 70″ single zone shrink tunnel
  • 3-way cooling feature at the tunnel exit for immediate product handling
  • NEMA 12 electrical cabinet and controls
  • Central point lubrication simplifies preventive maintenance
  • Low film alert warns that a film changeover will soon be necessary

Options

  • Casters for machine portability
  • Quick-change seal frame cylinder kit for higher speeds
  • Jib crane to assist with film loading
  • Dual film cradle for quick film changeover
  • 20″ film roll diameter capacity
  • Alternate voltages available: 208VAC, 220VAC, 575VAC
  • Print registration – top film only
  • Seal gap bridge, roller or telescoping, for product 3″-6″ long

Features:

Standard Specs

Speed

Up to 45 trays per minute

Electrical Power Requirements

460VAC, 3Ph, 60Hz, 48A, 38kW

Compressed Air Requirements

80 psi, 30 SCFM

Width (across machine)

6” – 18”

Length (flow direction)

6” – 15”

Height Range

2” – 12”

Film Roll Diameter

14″ with a 3″ core

Film Gauge

4 mil. max

Film Type

Low density polyethylene (L.D.P.E.)

Other Film Specifications

Clear or randomly printed
27” max width

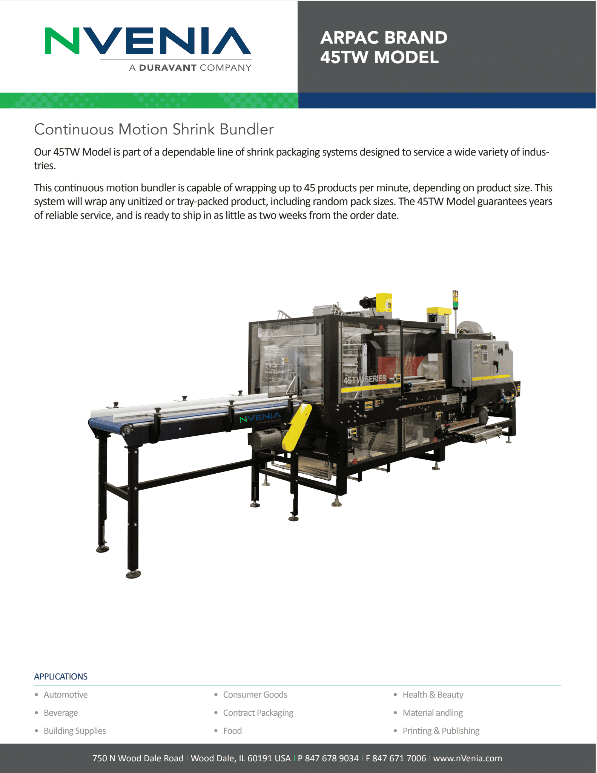

Document / Resources
