Fischbein Brand Pinch Bag Closer – PBC 6000 SS (Stainless Steel)


The Fischbein Brand PBC 6000 SS NEMA 4X wash down version is a heavy-duty, stainless steel sealer specifically designed to be used with pinch style multi-wall paper bags in extremely corrosive environments.  The stainless steel PBC features a continuous sealing process using Teflon® coated technology and a high-efficiency heater that instantly folds and seals the top of the pre-glued pinch bag.  A variable speed, direct drive system provides greater production on automated lines, sealing up to 75 linear feet per minute. A patented breakaway design reduces costly downtime caused by bag jams while allowing easier access for cleaning and service.

Are you interested in this product?
We are here to help.

Contact Us

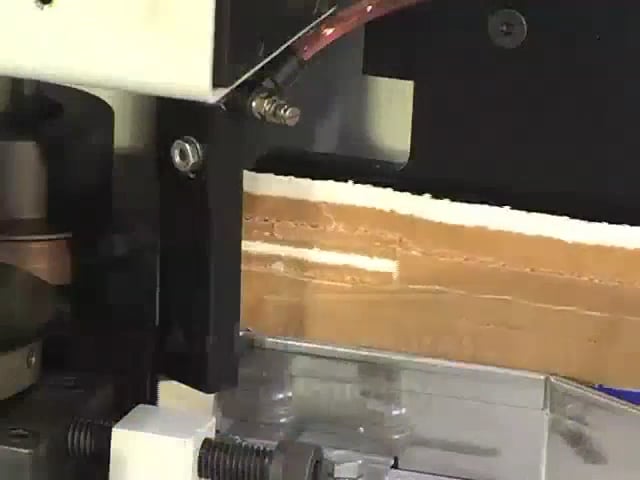

Featured Video

Features

  • 303/304 stainless steel frame, fabricated parts, fasteners, control boxes, and air cylinder
  • Wash down NEMA 4X electrics including motors
  • Seals a variety of pre-glued multi-wall, paper pinch-style bags.
  • Sift resistant closures makes it perfect for powders and granulated chemicals, pesticides fertilizer, pet-food and food products.
  • Bag top air scrubber removes product debris from seal area
  • Safe and easy to use control panel a with digital temperature display and a keypad for variable speed control.

Options

  • Left to right operation
  • Reverse fold – rear direction
  • Extended infeed for automation applications
  • Additional motor starter and contactor for conveyor
  • 575 VAC

Bag Types

Multi-wall paper pinch-style bags with pre-applied glue


Gussets

Any size including flat bags


Free Bag Top

Minimum 6 in (15.2 cm)


Standard Specs

Dimensions

W 68 in (172.7 cm) x D 33 in (83.8 cm) x H 60.5in to 94.5in (153.7 cm to 240 cm)

Speed

Up to 75 linear feet per minute

Electric (UL Listed, Type 4X Main Electrical Panel)

230/380/460V-3PH-60Hz, 24 VAC Control Voltage

Air

90 PSI, 7 SCFM
