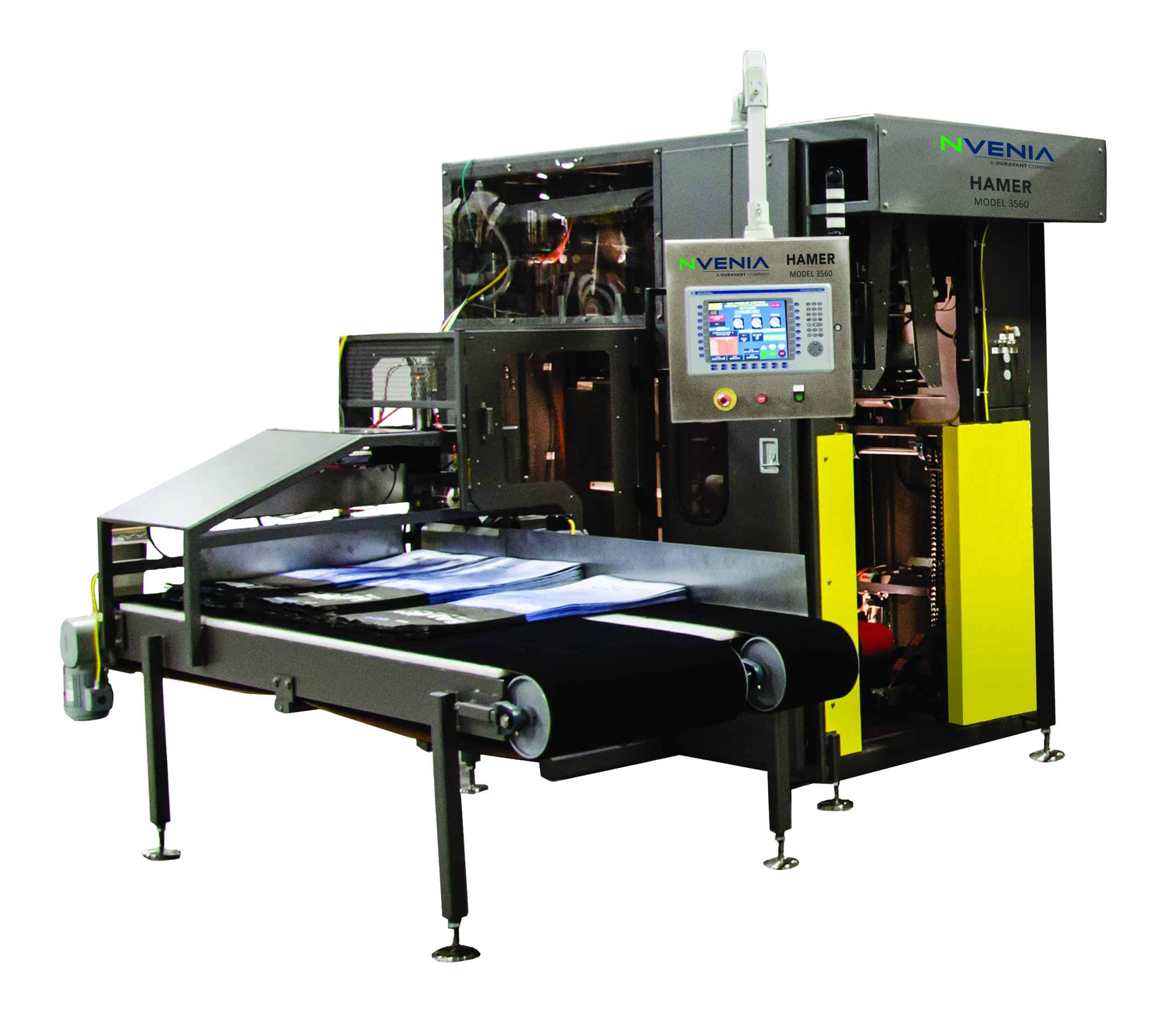

Hamer Brand Model 3560 Open Mouth Bagging Machine

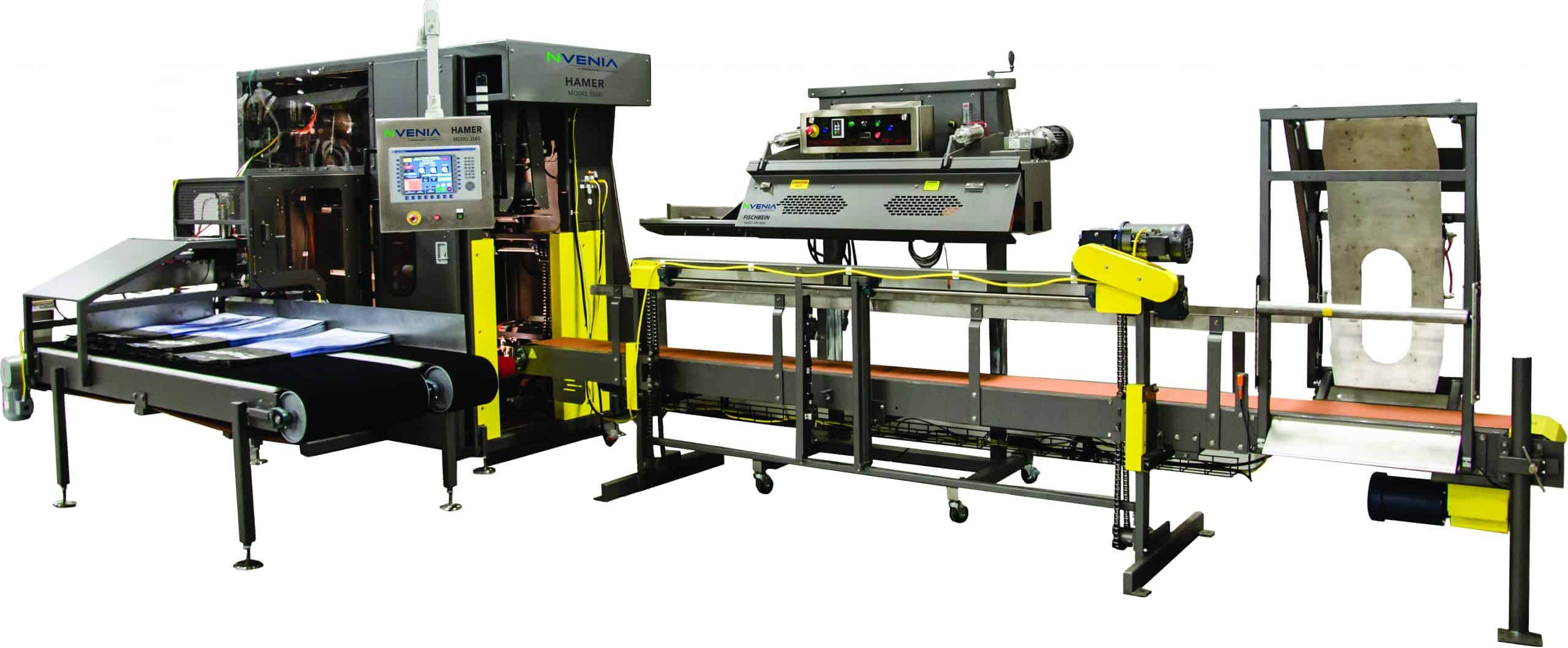

The Hamer Model 3560 Automated Bagging System provides fully automatic bag hanging and transfer for a wide variety of flat or gusseted, pre-made open-mouth paper, woven polypropylene and polyethylene (PE) bags, as well as all forms of pinch bags. The Model 3560, when integrated with an electronic net weigh bagging scale or auger filling system – automatically picks and positions the empty bag on the filler spout, fills the bag with product and immediately directs the filled bag to the bag closing station. This fully integrated bagging system is compatible with a wide range of products with a smaller footprint than the Hamer Model 3597.

Are you interested in this product?
We are here to help.

Contact Us

Features

Standard

  • Processes a variety of flat or gusseted bags, including multi-wall paper, laminated woven polypropylene, and pinch bags.
  • Product change-over is fast, easy, and safe thanks to advanced touch screen controls and motorized adjustments.
  • Auto bag index correction ensures the bag is centered under the spout prior to filling.
  • The “no bag-no dump” feature prevents the machine from releasing product unless the bag is centered correctly, making for minimal product spills.

Options

  • Integrated sealing conveyor
  • Extended bag feed conveyor
  • Special anti-corrosion package
  • Automated tilt tray adjustments
  • Network router
  • Enhanced dust controls
  • Tagger infeed assembly
  • 575 VAC
  • Data collection and reporting

Bag Types

  • Pillow
  • Gusseted
  • Polyethylene – PE (4 mil minimum) bags
  • Polypropylene bags
  • Poly Woven Laminate bags
  • Pinch Bottom Open Mouth (PBOM) bags
  • Paper multiwall/Kraft bags
  • Paper/Poly Lined bags
  • BoPP/BOM

Bag Sizes

  • Bag Width – 12” to 20”
  • Bag Length – 24” to 40”

Bag Thickness

  • Maximum 12 mils

Free Bag Top

  • Minimum 6 in (15.2 cm)

Standard Specs

Dimensions

L 66 in (167.4 cm) x D 33 in (83.82 cm) x H 72 in (182.88 cm)

Speed

Up to 14 bags per minute, product and bag size dependent

Electric (NEMA 12)

230/380/460 VAC, 3 PH, 60 Hz

Air

30 cfm CFM @ 100 PSI
