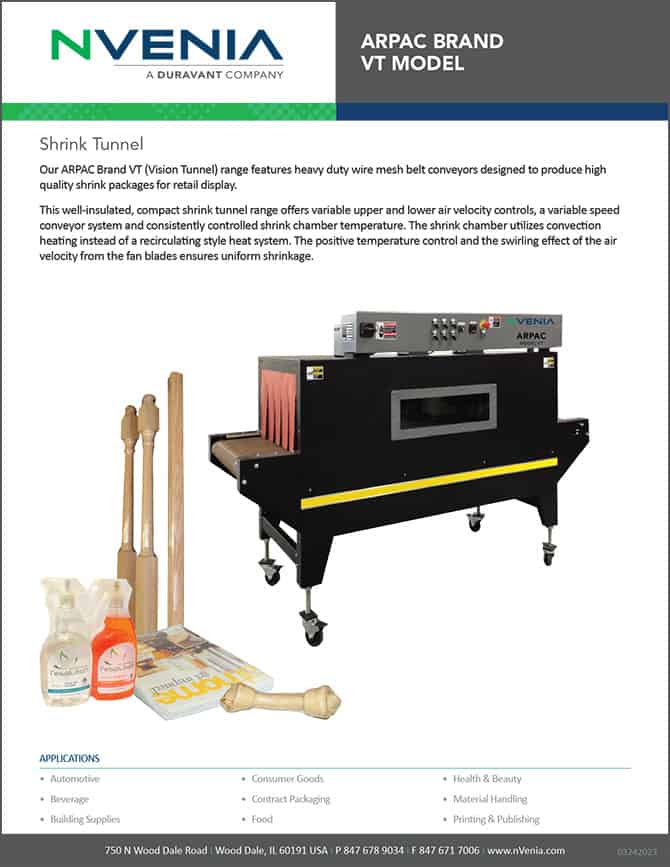

Arpac Brand VT Model


This well-insulated, compact shrink tunnel offers variable upper and lower air velocity controls, a variable speed conveyor system and a consistently controlled shrink chamber temperature. The shrink chamber utilizes convection heating instead of a recircu­lating style heat system. The positive temperature control and the swirling effect of the air velocity from the fan blades ensures uniform shrinkage.

Are you interested in this product?
We are here to help.

Contact Us

Featured Video

Features

Standard

  • Compact welded steel frame with laser cut components
  • Powder coat finish provides a durable scratch resistant surface that prevents corrosion
  • Operator side viewing window with illuminated shrink chamber
  • Double insulated shrink chamber offers maximum energy efficiency with minimal heat loss
  • Convection style heating system provides consistent shrink wrapping
  • Variable upper and lower air velocity controls
  • Top and bottom Calrod heating elements
  • Variable speed conveyor provides flexibility with uniform shrinkage
  • Standard heavy duty wire mesh belt
  • Standard casters mounted with leveling legs for machine portability

Options

  • Standard and custom belts available
  • Air motor for tunnel evacuation during power loss
  • Internal product guides
  • UL certified electrical cabinet

Chamber Size

VT18 Model

  • 12″ Height x 22″ Width x 48″ Length (Total length of 72″)

VT18-EXT Model

  • 12″ Height x 22″ Width x 72″ Length (Total Length of 96″)

Standard Specs

Speed

Conveyor speed up to 100 feet per minute

Electrical Power Requirements

230VAC, 60 Hz, 3ph
