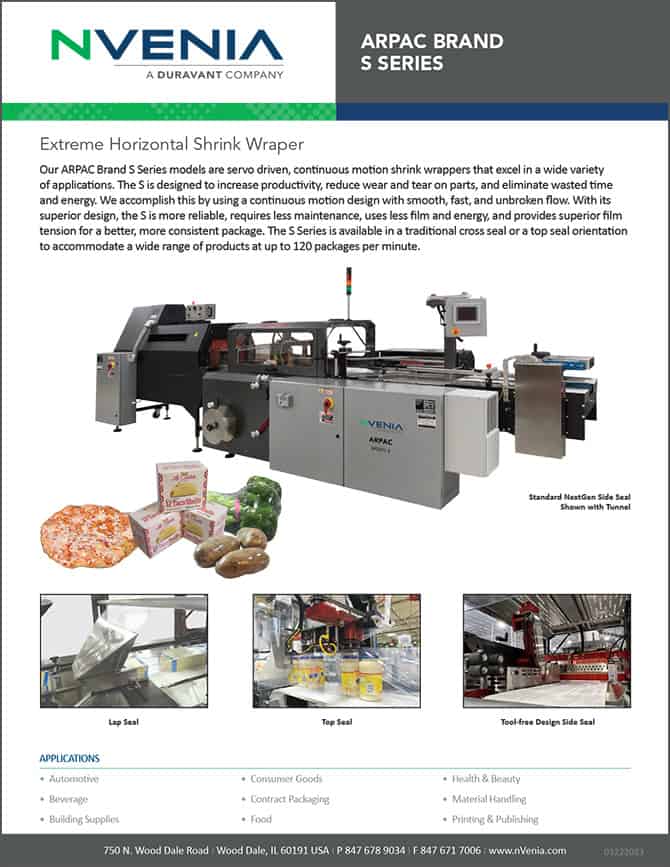

Arpac Brand S Model


Our S model is a servo driven, continuous motion shrink wrapper that excels in a wide variety of applications. The S is designed to increase productivity, reduce wear and tear on parts, and eliminate the waste of time and energy by using a continuous motion design with smooth, fast, and unbroken flow. With its superior design, the S is more reliable, requires less maintenance, uses less film and energy, and provides superior film tension for a better, more consistent package.

Are you interested in this product?
We are here to help.

Contact Us

Featured Video

Features

Standard

  • Dual axis servo driven cross seal and seal carriage
  • Next Gen Side Seal with overload and wrap sensor technology
  • Electronic film bunching at cross seal relieves film tension between products resulting in consistently stronger seals
  • Low height film rack holds double length centerfolded rolls of film up to 16” diameter
  • Powered selvage winder with dancer bar control and film break detection
  • Electronic jam protection programming at cross seal
  • Inclinometers at film unwind and selvage winder replaces potentiometers
  • Direct driven conveyor sections eliminates maintenance

Options

  • Standard or custom infeeds for almost any application
  • Servo driven conveyor sections
  • Powered product bypass
  • Single or dual roll film centerfolders

Film

  • 45-90 gauge polyolefin
  • 1-4 mil low density polyethylene
  • Film width up to 78″ flat or 38″ centerfolded

Product Range

  • Minimum product size: 2″ Width x 2″ Length x .25″ Height
  • Maximum product size: 30″ Width x Infinite Length x 12″ Height
  • Up to 120 packages per minute

Standard Specs

Speed

Up to 150 feet per minute or 120 packages per minute

Electrical Power Requirements

240/480 VAC, 3 Ph, 60 HZ

Compressed Air Requirements

No air required

Width (across machine)

2″-30″

Length (flow direction)

2″-Infinite

Height Range

.25″ – 12″

Film Roll Diameter

16”

Film Gauge and Type

45-90 mil polyolefin

1-4 mil low density polyethylene

Other Film Specifications

Up to 38″ centerfolded
