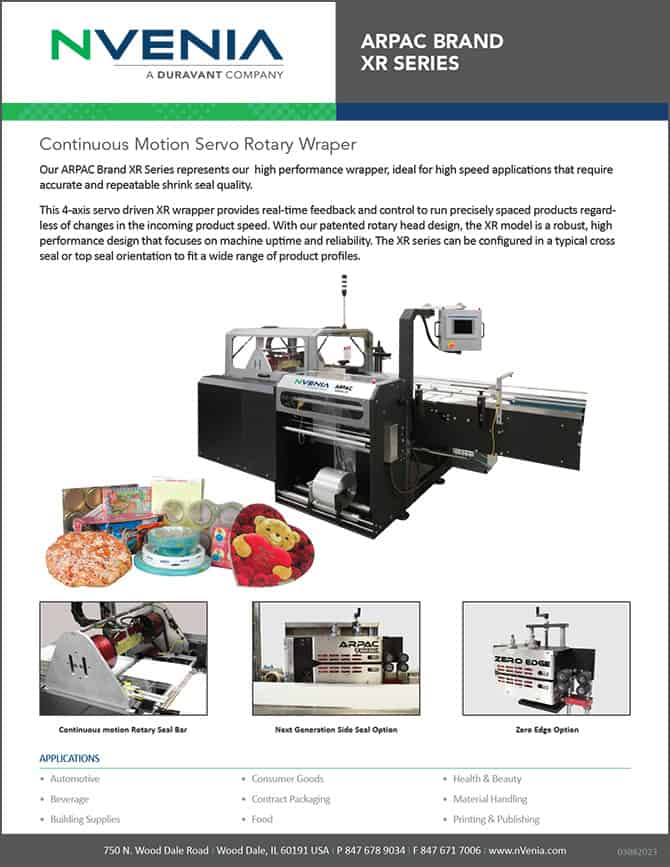

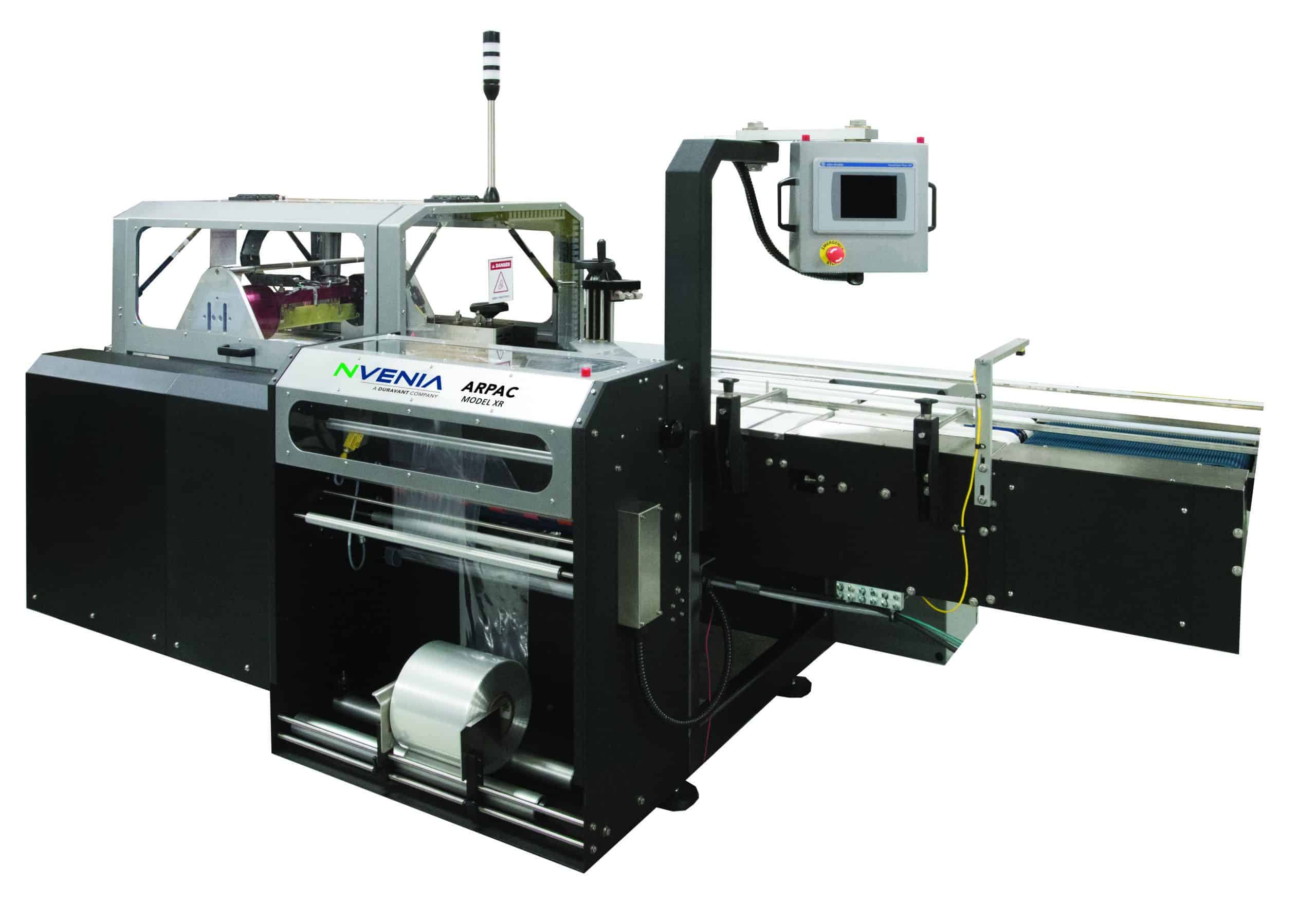

Arpac Brand XR Model Shrink Wrapper


Our XR Model is a high performance wrapper, ideal for low profile product in high speed applications that re­quire accurate and repeatable shrink seal quality.

This 4-axis servo driven XR wrapper provides real-time feedback and control to run precisely spaced prod­ucts regardless of changes in the incoming product speed. With our patented rotary head design, the XR model is a robust, high performance design that focuses on machine uptime and reliability.

Are you interested in this product?
We are here to help.

Contact Us

Featured Video

Features

Standard

  • Patented rotary cross seal motion for smooth high speed performance
  • 4 Servo axis for high speed accuracy and repeatability
  • Speed modulation programming will match upstream production rates for smooth product control
  • Low height film rack holds double length centerfolded rolls of film
  • Heavy duty welded construction
  • Powder coat finish provides a durable scratch resistant surface that prevents corrosion
  • Power selvage winder with dancer bar control & film break detect
  • NextGen Side Seal with overload & wrap around sensor
  • Electronic film bunching relieves film tension between products
  • Tool-less change over
  • Direct drives for maintenance free operation
  • All conveyor drives servo driven for maximum control and precision

Options

  • Standard or custom infeeds for almost any application
  • Powered product bypass
  • Single or dual roll film centerfolders

Film

  • 45-90 gauge polyolefin
  • 1-3 mil low density polyethylene
  • Film width up to 64″ flat or 30″ centerfolded

Product Range

  • Maximum product size: 20″ W x  6″ H x Infinite Length
  • Maximum speed: up to 200 feet per minute

Standard Specs

Speed

Up to 200 feet per minute or 250 packages per minute

Electrical Power Requirements

480 VAC, 3 Ph, 60 Hz

Compressed Air Requirements

None

Film Roll Diameter

16”

Film Type

Polyolefin, LDPE, PVC
